Using pipes that are too small for high-flow systems can cause pressure drops and restrict water flow, leading to poor performance and system damage. Common mistakes include neglecting proper sizing, using incompatible fittings, and skipping support or sealing guidelines. To avoid these issues, guarantee you calculate the correct pipe diameter based on flow rate and pressure loss, and follow best practices. Keep going to discover how to optimize your plumbing for peak performance.
Key Takeaways
- Using undersized pipes increases pressure loss, reducing flow efficiency and system performance.
- Overly large pipes can cause turbulence and unnecessary costs without improving flow.
- Neglecting proper pipe support and secure fittings leads to leaks and flow restrictions.
- Failing to calculate appropriate pipe diameter based on flow volume causes bottlenecks.
- Ignoring industry guidelines and best practices results in system inefficiency and early failure.
Calculated Industries 4095 Pipe Trades Pro Advanced Pipe Layout and Design Math Calculator Tool for Pipefitters, Steamfitters, Sprinklerfitters and Welders | Built-in Pipe Data for 7 Materials , White
GET INSTANT ANSWERS for all your pipe layout and design problems so you can get to building; when…
As an affiliate, we earn on qualifying purchases.
As an affiliate, we earn on qualifying purchases.
Why Pipe Size Is Critical for High-Flow Plumbing Performance
Choosing the right pipe size is essential because it directly affects the flow rate and pressure within your plumbing system. If pipes are too small, pressure drops occur, reducing flow efficiency and causing inconsistent water delivery. Larger pipes minimize pressure drops, maintaining steady flow and ideal pressure. Proper pipe sizing influences flow dynamics, ensuring water moves smoothly without turbulence or bottlenecks. When pipes are correctly sized for high-flow systems, you get consistent performance and fewer issues like noise or pressure fluctuations. Conversely, undersized pipes force water through narrow channels, creating friction and reducing overall system efficiency. Accurate pipe sizing is crucial for optimizing system performance and avoiding costly repairs. By selecting the appropriate pipe diameter, you improve flow dynamics, maximize pressure, and ensure your high-flow plumbing system operates reliably under demanding conditions. Additionally, understanding the pressure-flow relationship helps in designing a system that maintains optimal performance across various usage scenarios.
LESSO 1-1/2" PVC 90 Degree Sweep Elbow, 1-1/2 inch PVC Pipe Fittings High Flow Capacity White for Plumbing and Pool Systems, Schedule 40 White 2 Pack
LESSO PVC Pipe Fittings Includes: 2pcs x 1-1/2 inch PVC 90 Degree Sweep Elbow (Socket x Socket)
As an affiliate, we earn on qualifying purchases.
As an affiliate, we earn on qualifying purchases.
Common Mistakes That Reduce Flow and Damage Your System

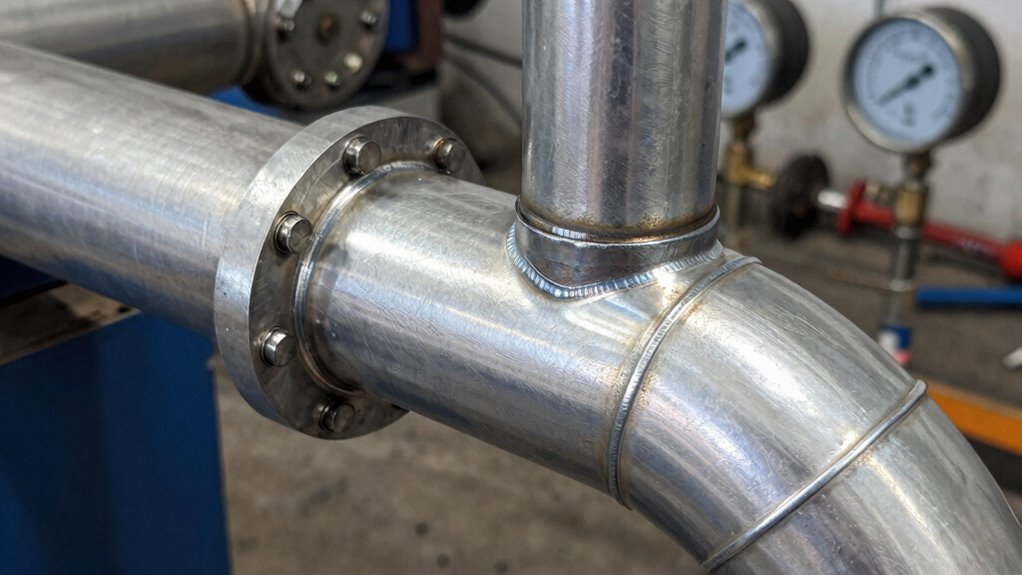

One common mistake that can considerably reduce flow and damage your system is neglecting proper pipe installation practices. Poor installation errors often lead to issues like increased pipe corrosion, which weakens the pipe walls and hampers flow. To avoid these problems, be mindful of these key points:
